Description
Product Overview

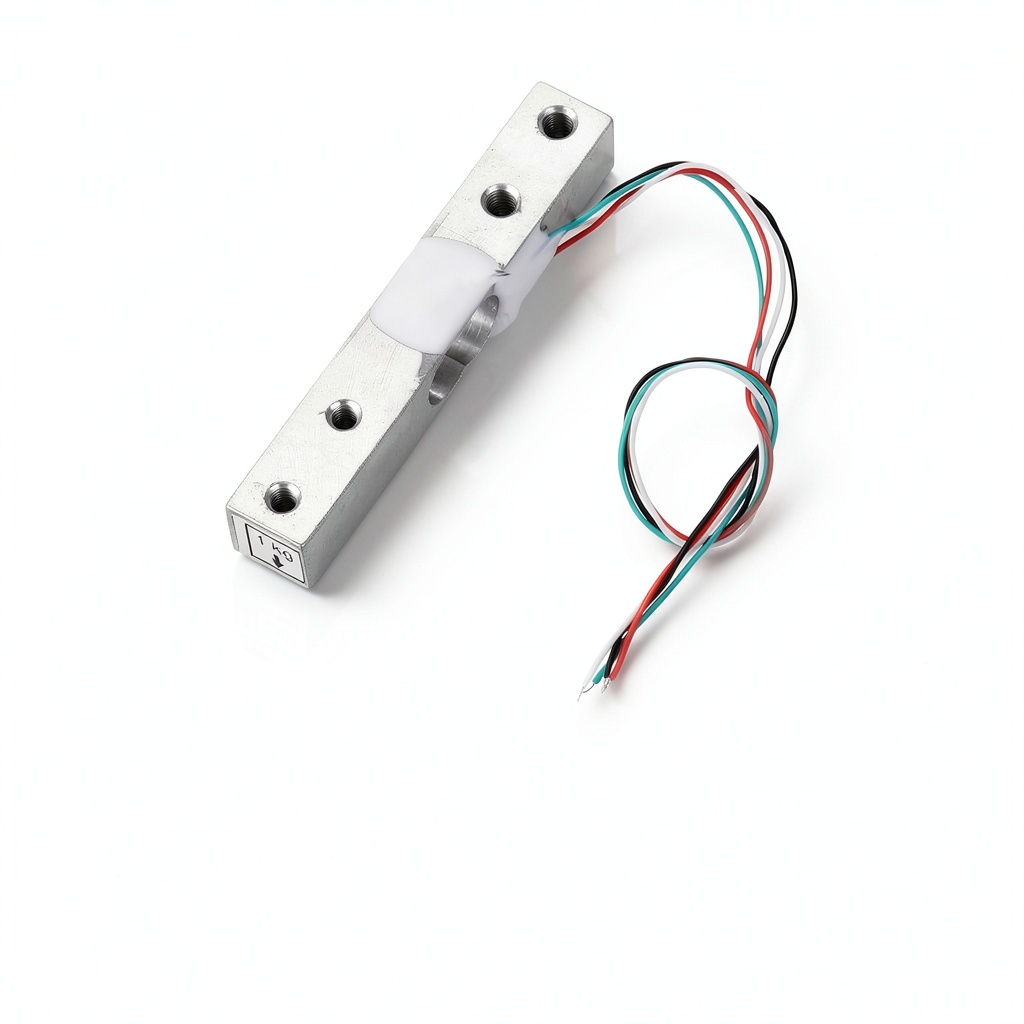

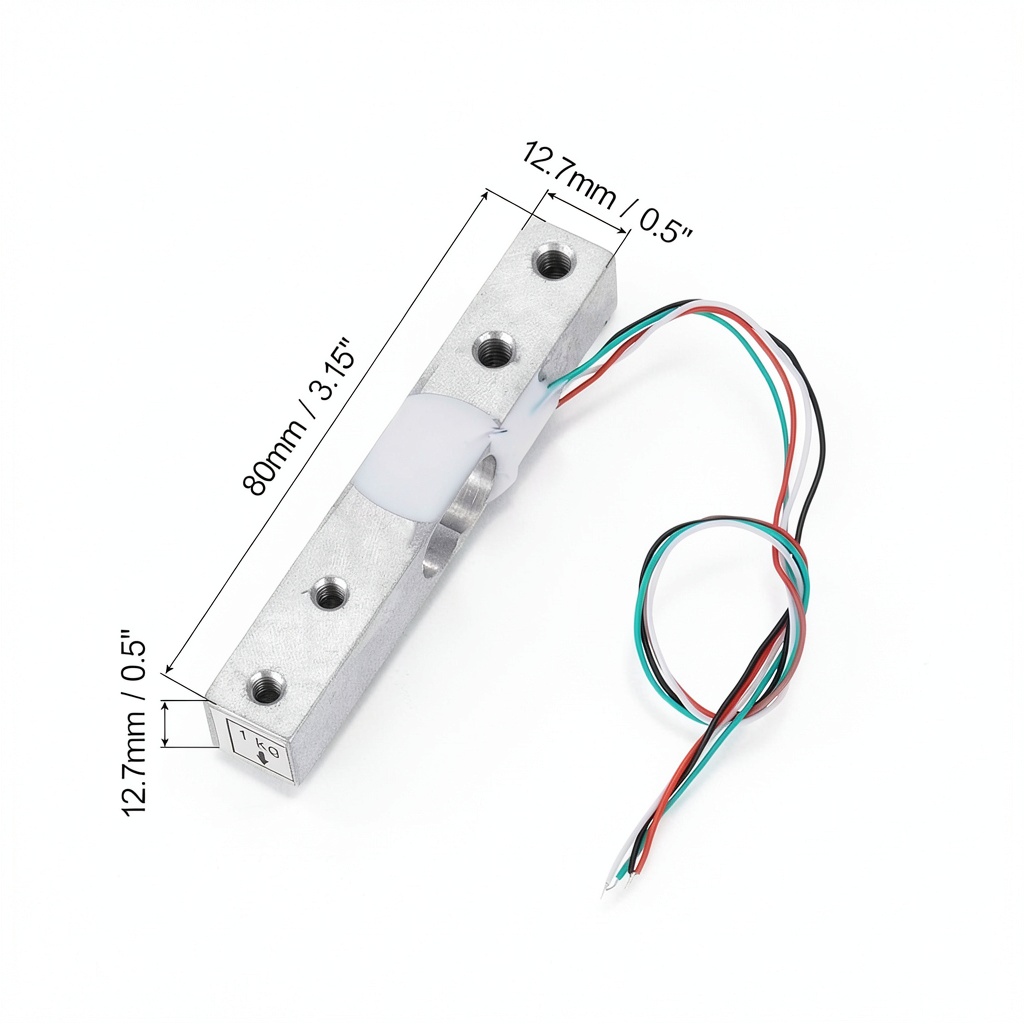

The MECCANIXITY Weighing Sensor is engineered for high-precision weight measurement in industrial and scientific applications. Utilizing a 24-bit A/D conversion chip (HX711), it provides exceptional accuracy of 0.1g and a maximum load capacity of 1kg (2.2 lb). Constructed from durable aluminum, this sensor features a rated output sensitivity of 1.0±0.1 mV/V and an output impedance of 1000±50 ohms, ensuring stable performance. Operating within a voltage range of 2.6–5.5V, it includes four leads (red to E+, black to E-, green to A+, white to A-) for straightforward connection to HX711 modules, making it ideal for electronic scales and force detection systems.
Usage

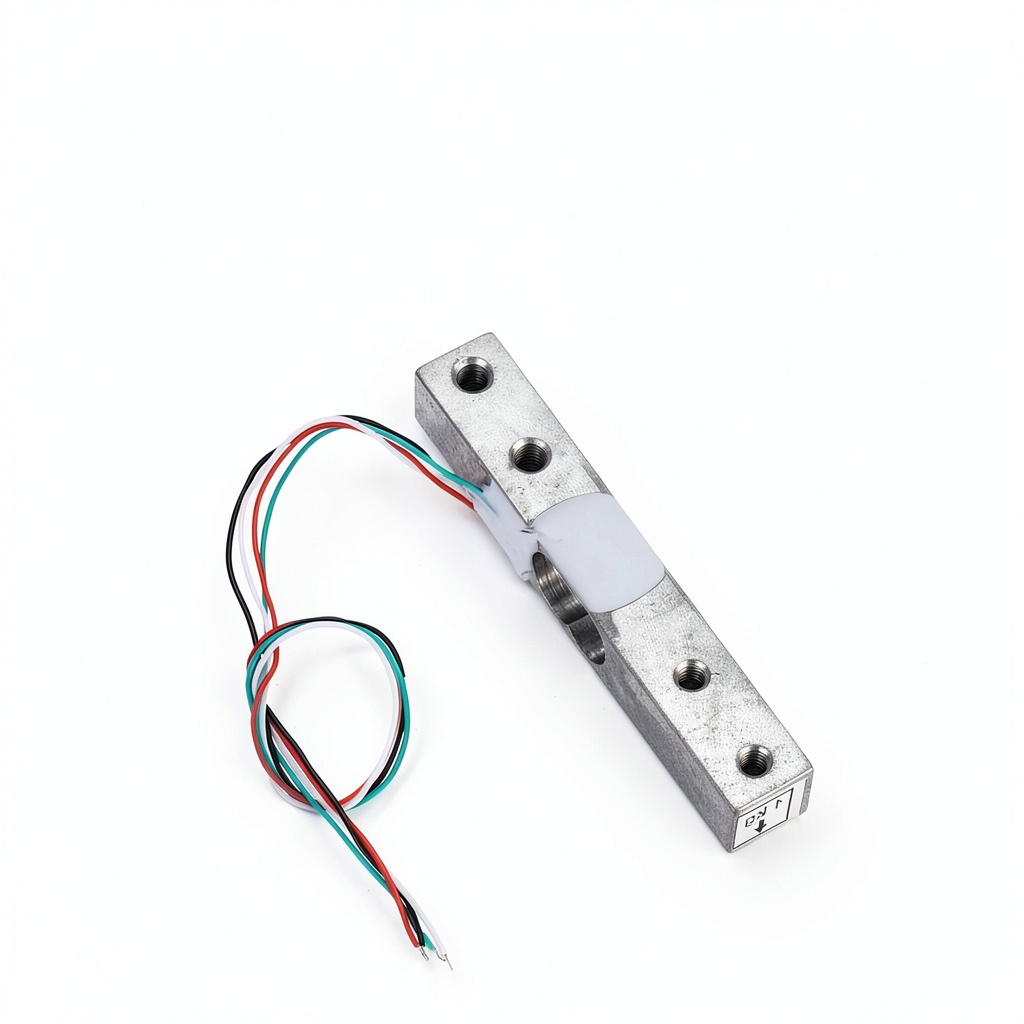

This weighing sensor is suited for environments requiring accurate force measurement, such as industrial scales, laboratory balances, and DIY electronic projects. It is commonly used by engineers, hobbyists, and technicians in settings like manufacturing quality control, educational experiments, and custom scale development. The sensor should be fixed at one end via screw holes, with the other end free to apply force in the labeled direction, avoiding direct pressure on the white rubber part to prevent damage. It excels in applications demanding reliable data collection and integration with microcontrollers for real-time monitoring.
Why Choose Us
MECCANIXITY prioritizes quality and precision, with this sensor featuring a high-grade aluminum build and advanced 24-bit A/D conversion for minimal error. The design focuses on ease of use, with clear labeling and standardized connections, reducing setup time. Backed by rigorous testing, it offers consistent performance and durability, making it a trusted choice for professionals seeking reliable weighing solutions without compromising on accuracy.
Key Features
- High precision with 0.1g accuracy for dependable weight measurements
- 1kg load capacity, ideal for a wide range of industrial and DIY applications
- 24-bit A/D conversion chip (HX711) ensures stable and accurate data output
- Durable aluminum construction enhances longevity and resistance to wear

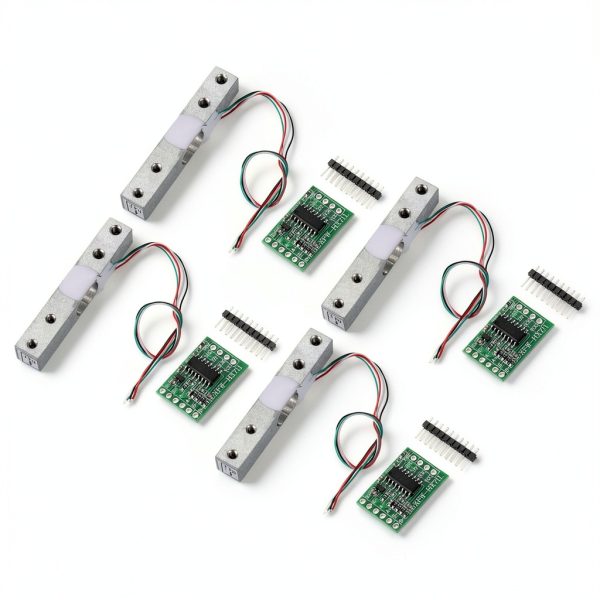

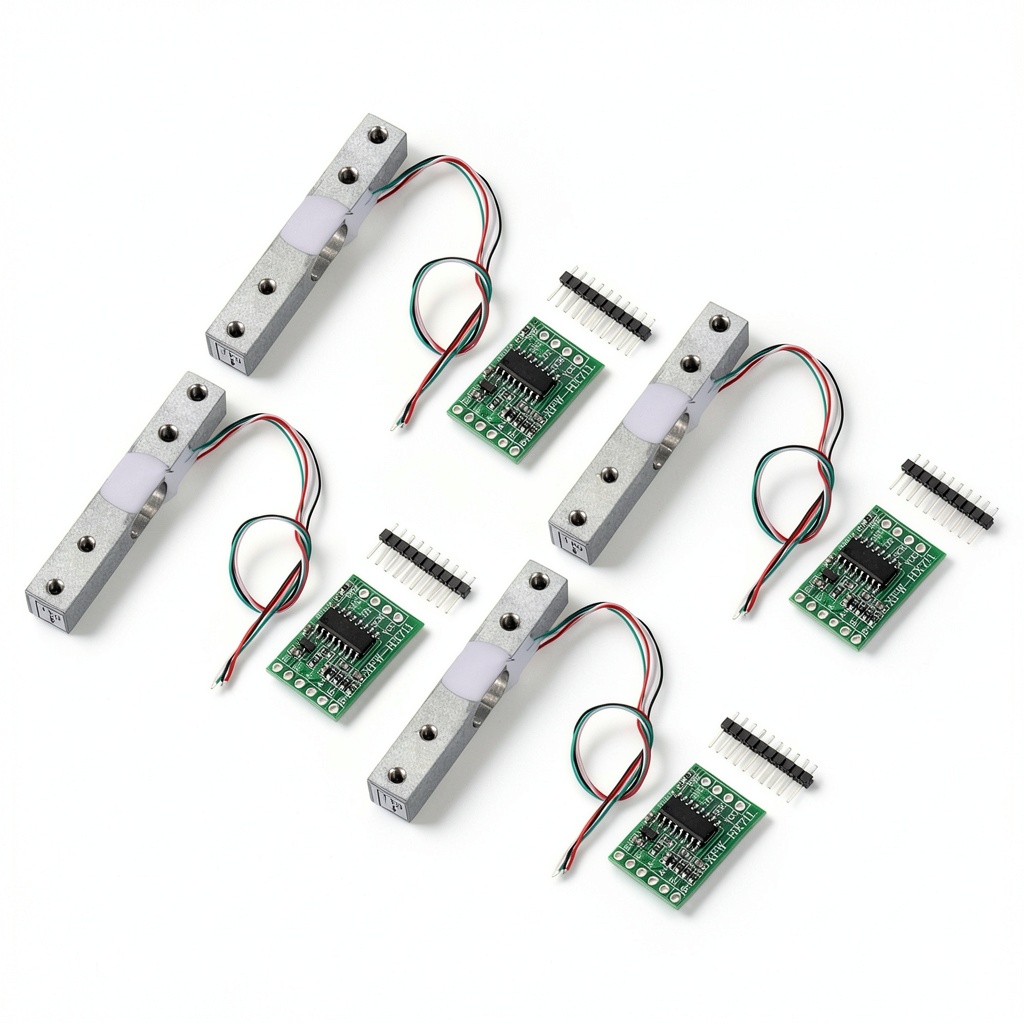

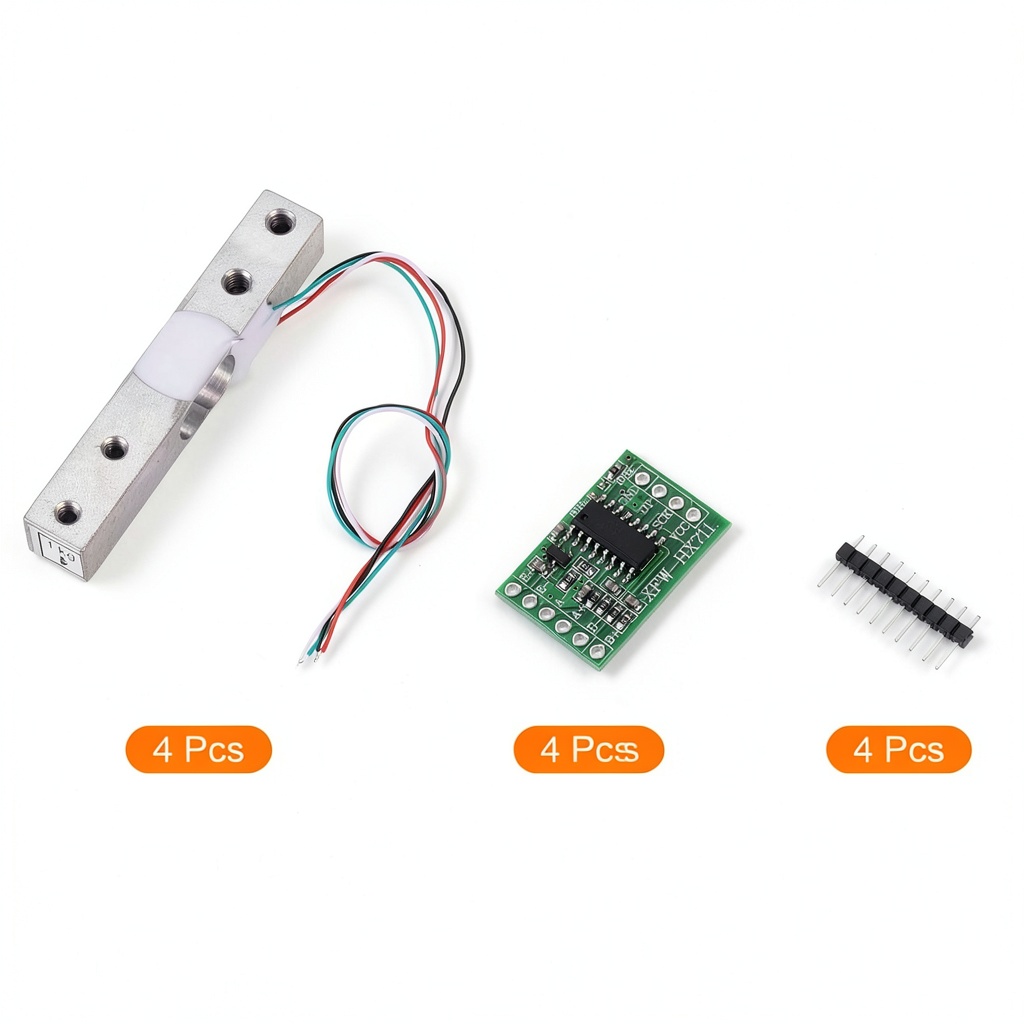

- Simple 4-lead connection system for easy integration with HX711 modules
FAQ
What is the maximum weight this sensor can measure?
The sensor has a maximum load capacity of 1kg (2.2 lb), making it suitable for light to medium-duty weighing tasks.
How do I connect the sensor to an HX711 module?
Connect the red wire to E+, black to E-, green to A+, and white to A- on the HX711 module for proper operation.
What is the operating voltage range?
It operates between 2.6V and 5.5V, compatible with most standard electronic systems.
Can this sensor be used in outdoor environments?
While durable, it is best used in controlled indoor settings to maintain accuracy and prevent moisture damage.
What applications is this sensor designed for?
It is ideal for electronic scales, industrial balances, and projects requiring precise force or weight detection.
