Description
Product Overview

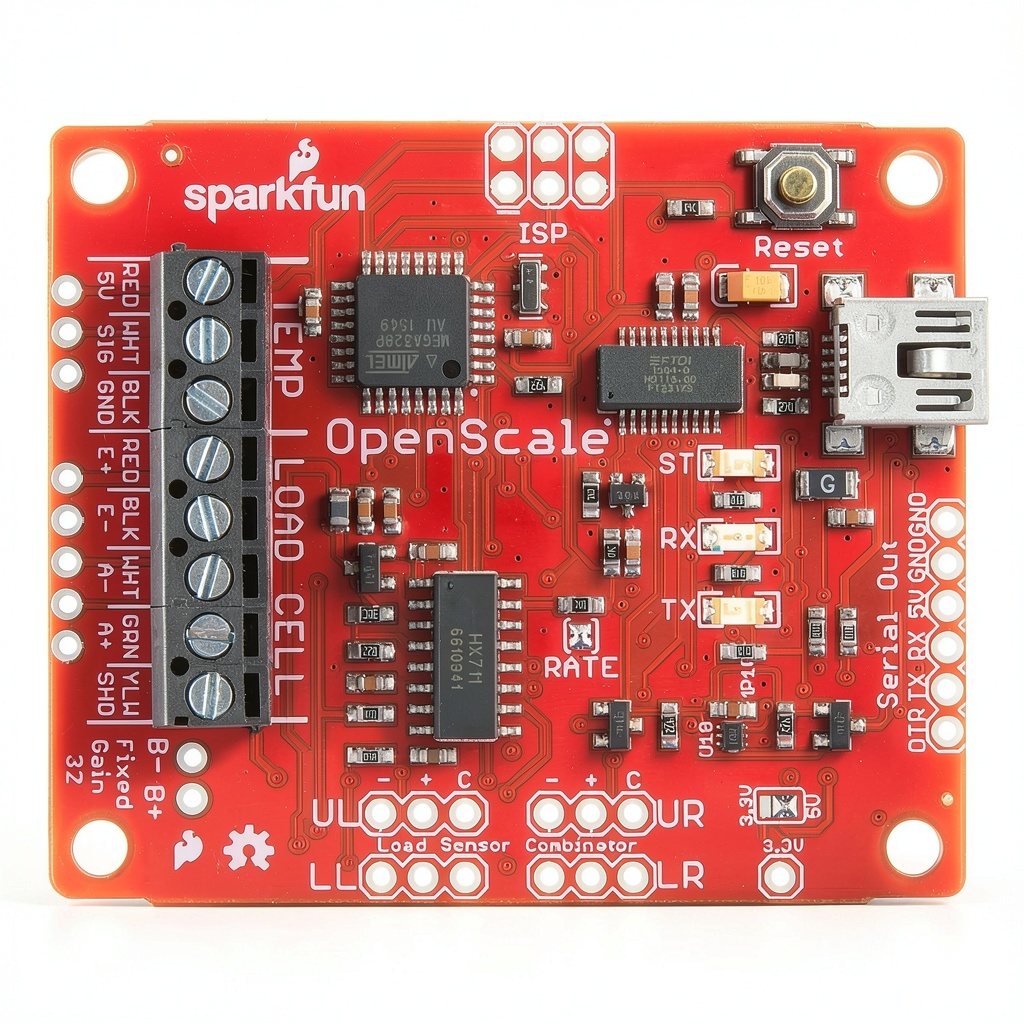

The SparkFun OpenScale is an open-source device engineered for accurate weight and temperature measurement, compatible with multiple types of load cells. It operates at 5V with a current draw of 80-100mA and includes features such as power cycling above 500ms, selectable output data rates of 10SPS or 80SPS, and both local and external temperature sensors. The device utilizes an ATmega328P microcontroller for data communication, an HX711 24-bit ADC for high-precision weight scaling, and a TMP102 sensor for ambient temperature recording. With dimensions of 3.94 x 0.59 x 2.95 inches and a weight of 0.48 ounces, it is compact and suitable for integration into various systems. Communication is handled via TTL levels at 9,600bps by default, with configurable baud rates ranging from 1,200bps to 1,000,000bps, and it supports USB to serial connections through an FT231 chip.
Usage
The OpenScale is ideal for projects and applications where static loads need to be monitored continuously, such as in industrial scales, scientific research, or automated systems. It is commonly used in environments like laboratories, manufacturing facilities, and DIY electronics projects where precise weight and temperature data are critical. Target audiences include engineers, researchers, and hobbyists who require reliable, hands-off data logging and analysis.
Why Choose Us
SparkFun OpenScale stands out due to its open-source design, allowing for customization and community support, ensuring long-term usability and updates. It offers high accuracy with a 24-bit ADC and flexible communication options, backed by SparkFun Electronics’ reputation for quality and innovation in the industrial and scientific sectors. The device’s ability to handle multiple load cell types and integrate temperature sensing provides a comprehensive solution not commonly found in similar products.
Key Features
- Open-source platform for easy customization and community-driven enhancements.
- Supports multiple load cell types with high-precision 24-bit ADC for accurate weight measurement.
- Integrated local and external temperature sensors for comprehensive environmental monitoring.
- Configurable data rates and baud rates up to 1,000,000bps for flexible data handling.
- Compact and lightweight design with USB connectivity for seamless integration into various systems.
FAQ
What types of load cells are compatible with the OpenScale?
The OpenScale is designed to work with multiple types of load cells, including those commonly used in industrial and scientific applications, by supporting standard electrical interfaces and calibration settings.
How do I connect the OpenScale to a computer for data logging?
You can connect the OpenScale via its mini USB port using an FT231 chip for USB to serial communication, allowing data transfer to serial terminals or data loggers like the OpenLog at configurable baud rates.
Can the OpenScale be used in outdoor environments?
While the OpenScale includes temperature sensors, it is primarily intended for indoor or controlled environments; for outdoor use, additional protection from moisture and extreme conditions may be necessary to ensure durability.
What is the power requirement for the OpenScale?
It operates at 5V with a current draw of 80-100mA, and it supports power cycling above 500ms for efficient energy management in continuous monitoring scenarios.
Is the OpenScale software open source?
Yes, the OpenScale is built on an open-source platform, enabling users to access and modify the firmware and software for custom applications and integration.
