Description
Product Overview

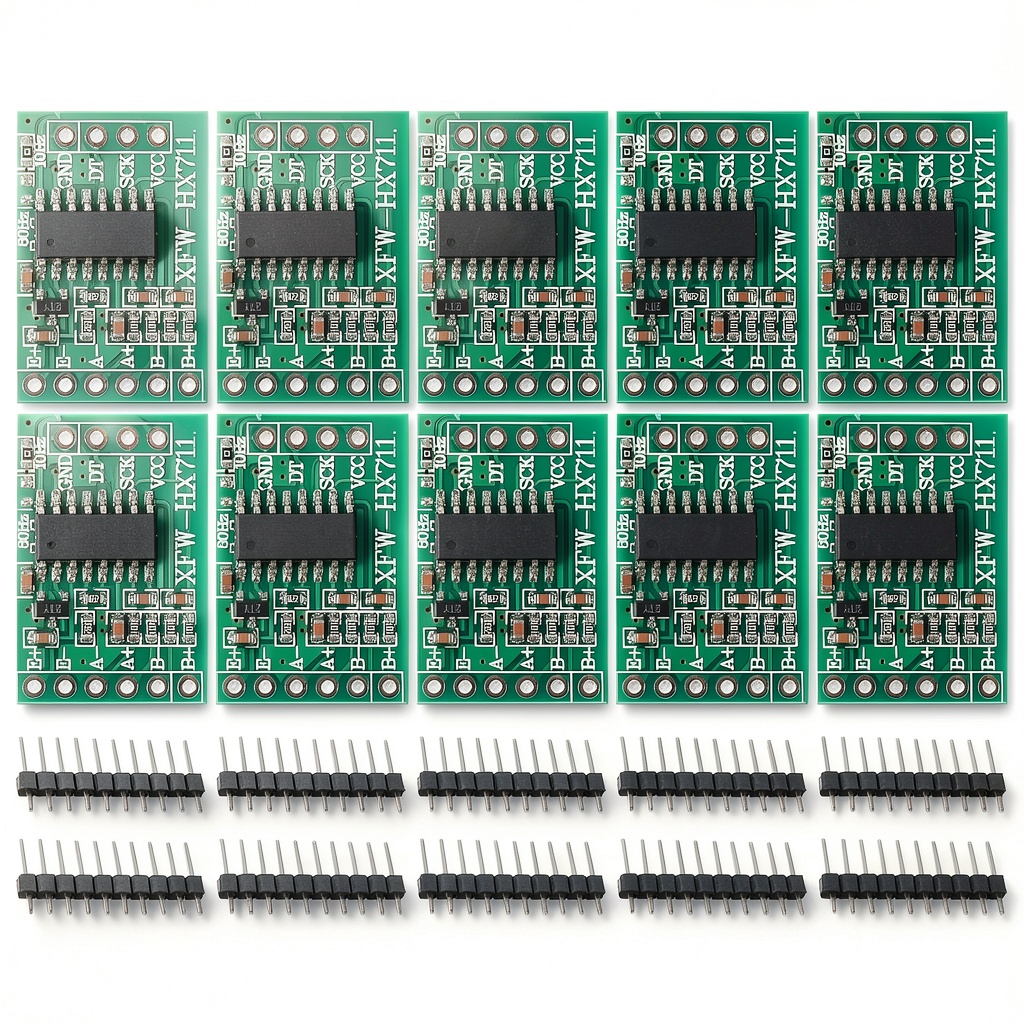

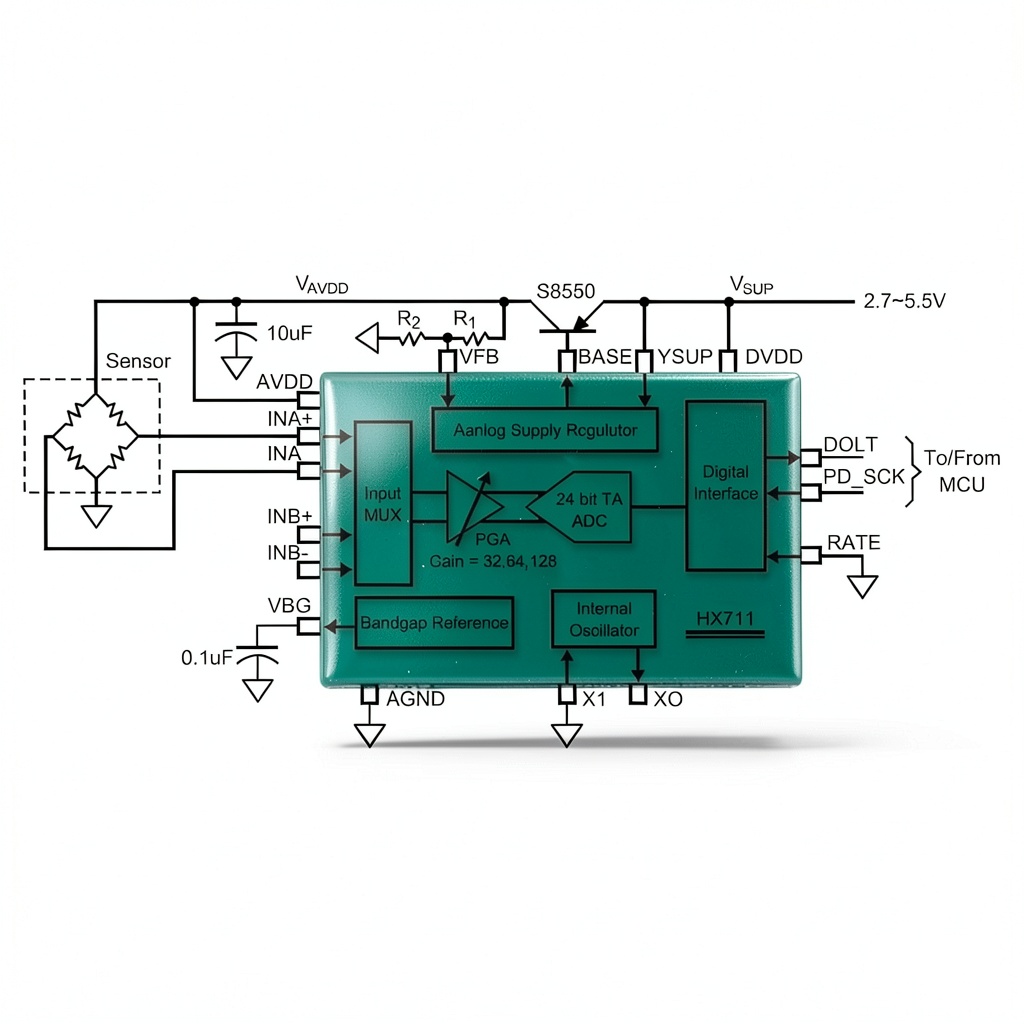

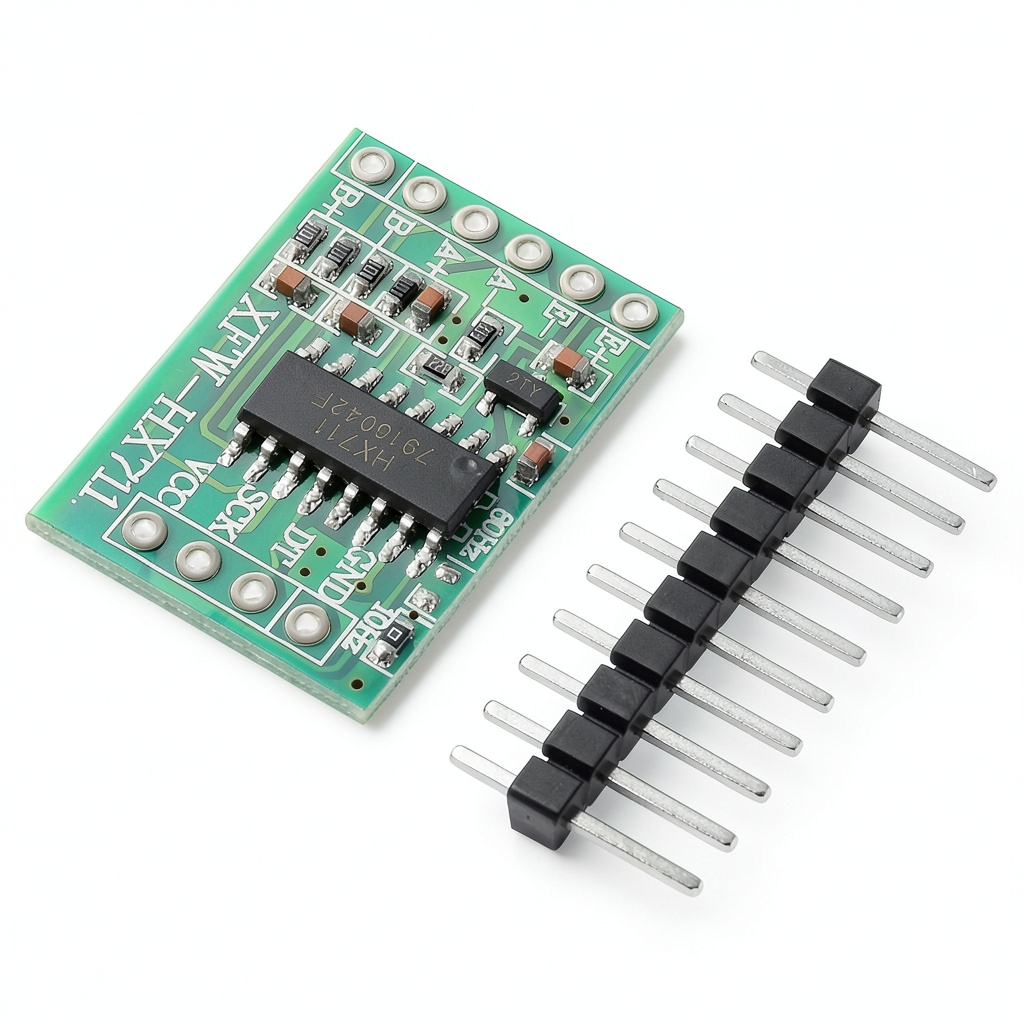

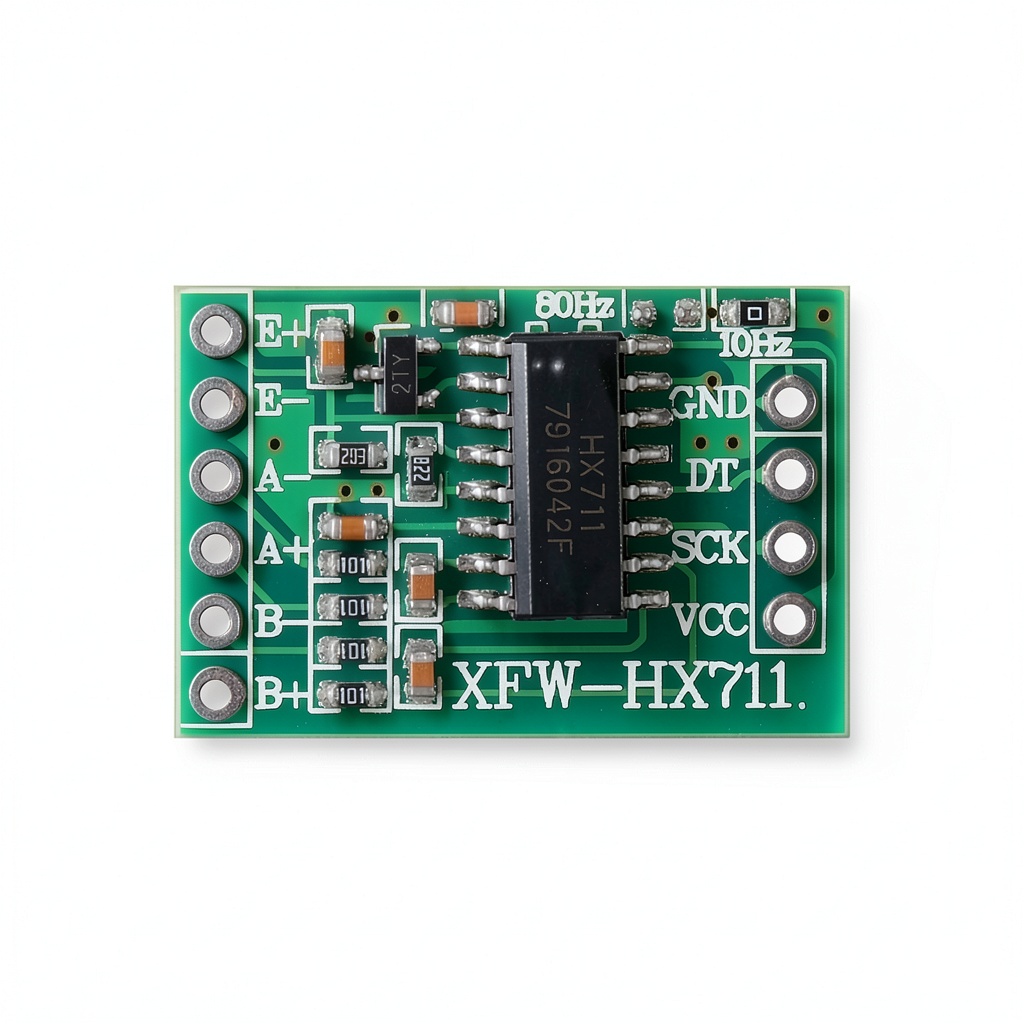

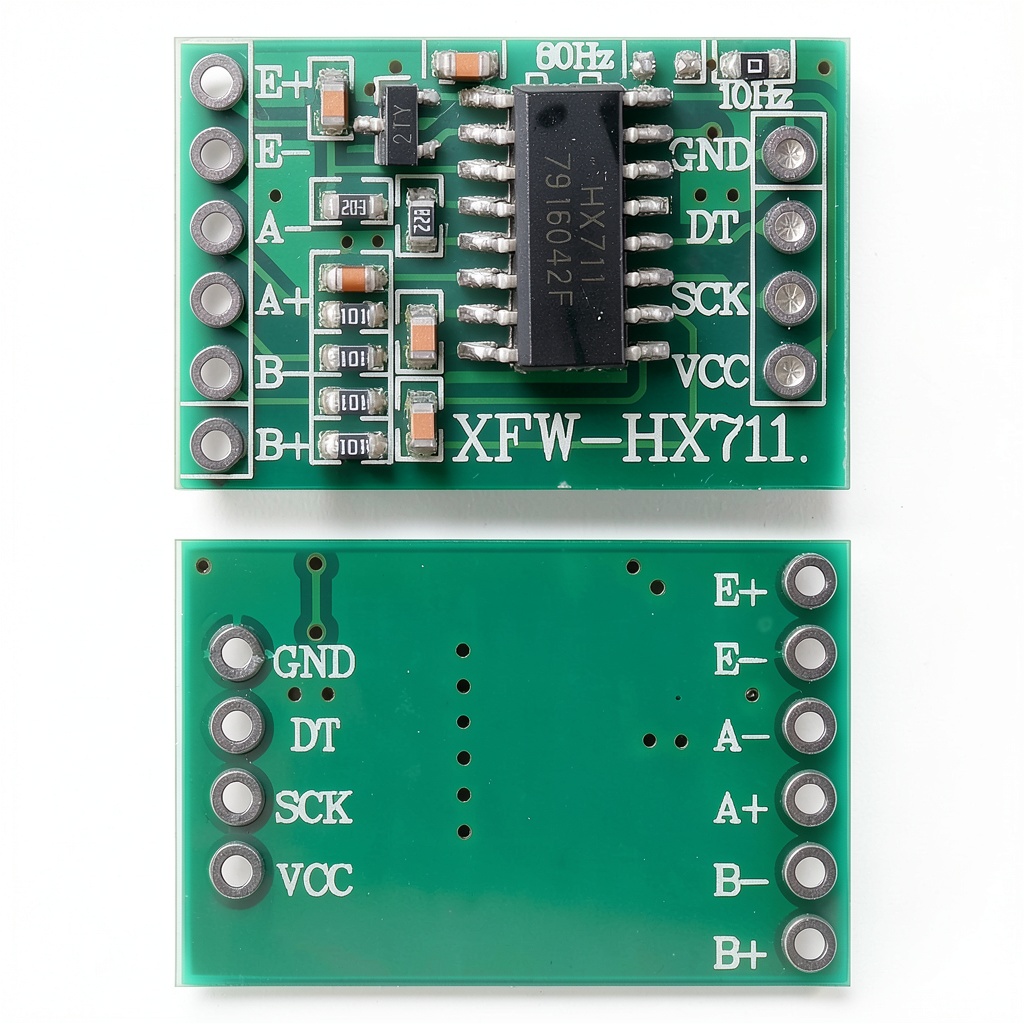

The HX711 load cell amplifier module by AOICRIE is engineered for high-precision electronic weighing applications, utilizing a 24-bit A/D converter chip for exceptional accuracy. It features two differential input channels and an integrated programmable gain amplifier with selectable gains of 32, 64, and 128, allowing for versatile signal conditioning. With compact dimensions of 3.94 x 2.91 x 1.18 inches and a lightweight design at 0.95 ounces, this module is easy to integrate into various systems. Manufactured with robust components, it ensures stable performance in demanding environments, making it a reliable choice for precise weight measurement tasks.
Usage
This amplifier module is ideal for electronic scales, kitchen scales, and industrial process control systems where accurate weight data is critical. It suits environments such as manufacturing facilities, laboratories, and home kitchens, catering to engineers, hobbyists, and professionals who require dependable measurement solutions. The module can be used in load cell-based applications, including batching systems, force measurement, and quality control processes, providing consistent results across temperature variations and mechanical stress.
Why Choose Us
AOICRIE’s HX711 module stands out due to its high-precision 24-bit A/D conversion, which minimizes noise and enhances measurement reliability. The on-chip programmable gain amplifier supports multiple gain settings, offering flexibility for different sensor types without external components. Built with quality materials and rigorous testing, it delivers long-term durability and compliance with industrial standards, ensuring you get a cost-effective solution that reduces calibration needs and maintenance over time.
Key Features
- 24-bit high-precision A/D converter for accurate weight measurements
- Dual differential input channels supporting multiple load cells
- Programmable gain amplifier with selectable gains of 32, 64, and 128
- Low-noise design for stable performance in varied environments
- Compact and lightweight construction for easy integration into scales and control systems
FAQ
What is the operating voltage range for the HX711 module?
The HX711 module typically operates at 2.6V to 5.5V, making it compatible with a wide range of power sources, including batteries and standard DC supplies, for flexible deployment in portable or fixed installations.
Can this amplifier be used with different types of load cells?

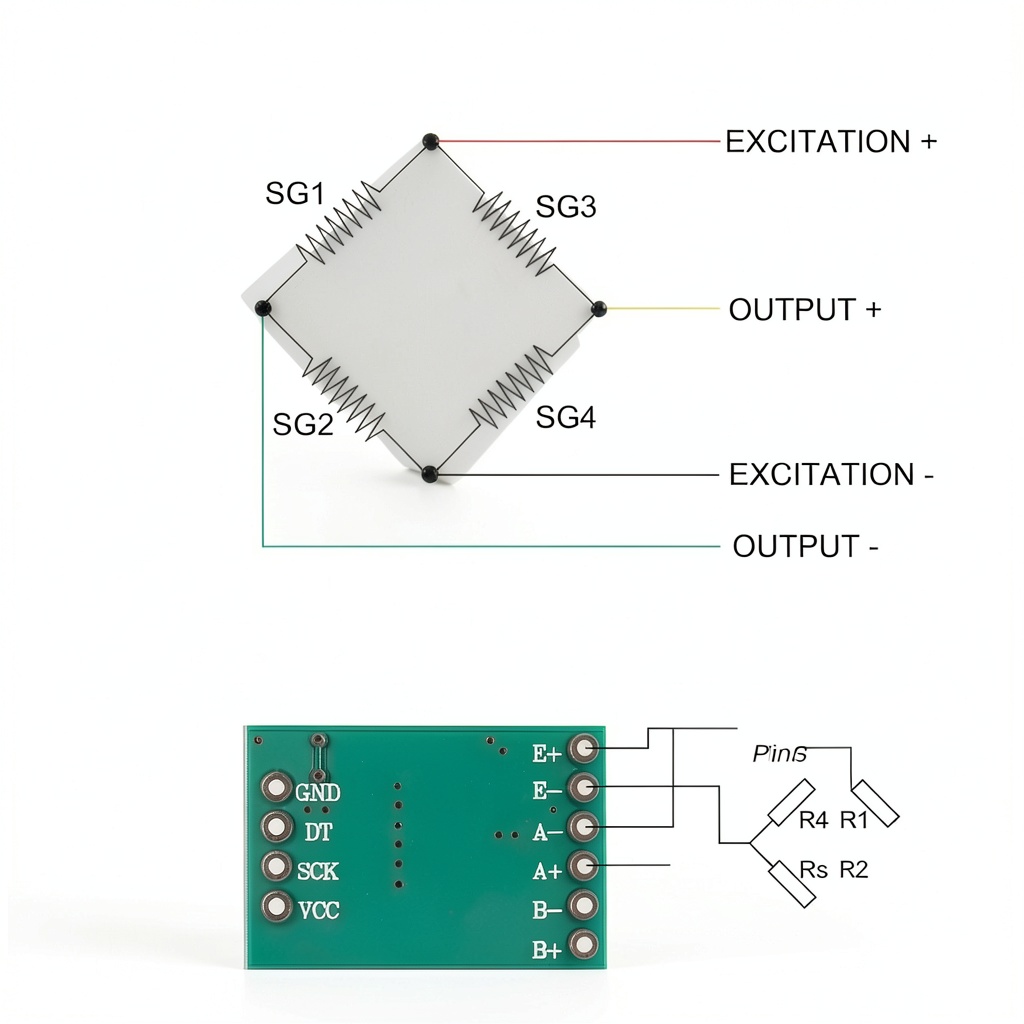

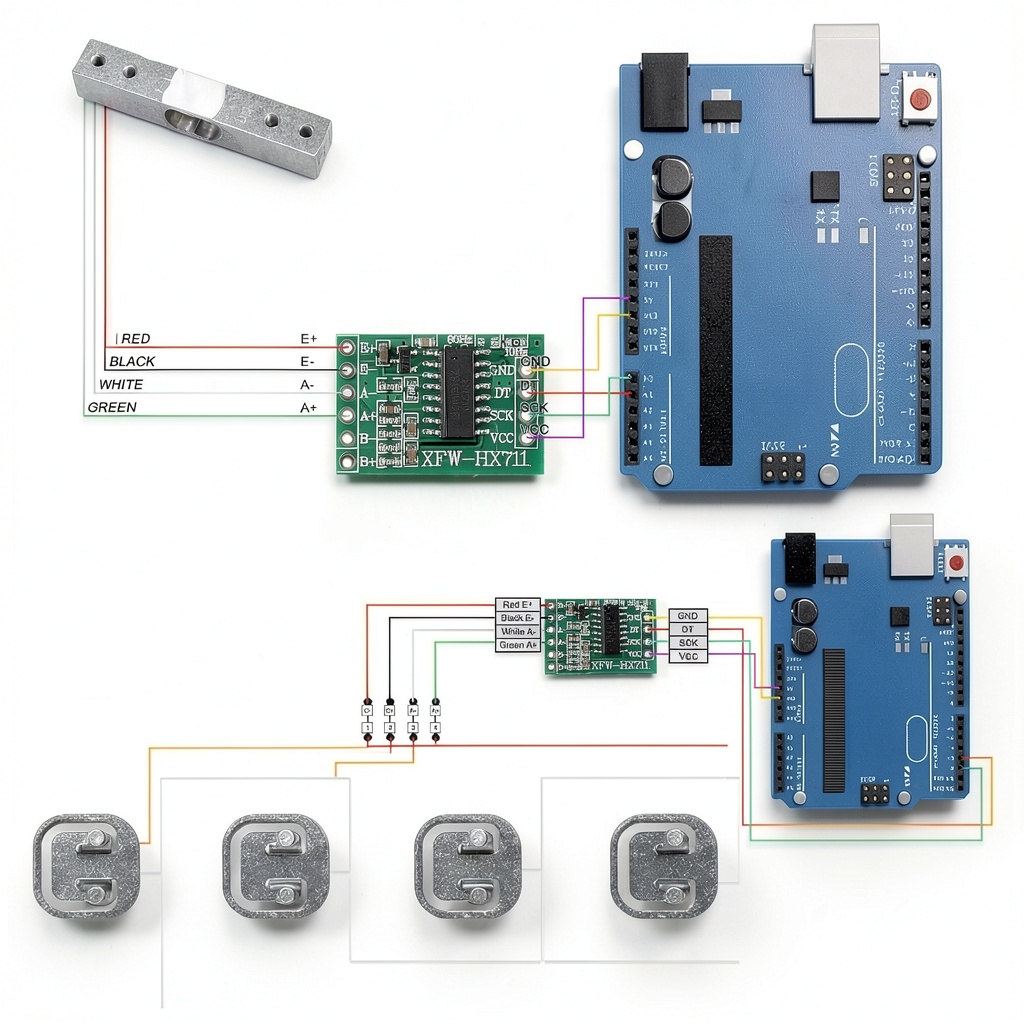

Yes, the HX711 supports various load cells through its dual input channels and adjustable gain settings, allowing it to work with strain gauge-based sensors commonly found in scales and force measurement devices.
How do I calibrate the HX711 for accurate readings?
Calibration involves applying known weights and adjusting the gain and offset parameters via the microcontroller interface, with detailed steps provided in the product documentation to ensure precise scaling for your specific application.
Is the module suitable for high-humidity environments?
While the HX711 is designed for general industrial use, it is not inherently waterproof; for high-humidity or wet conditions, additional sealing or enclosures are recommended to protect against moisture and extend lifespan.
Reviews
There are no reviews yet.
