Description
Product Overview

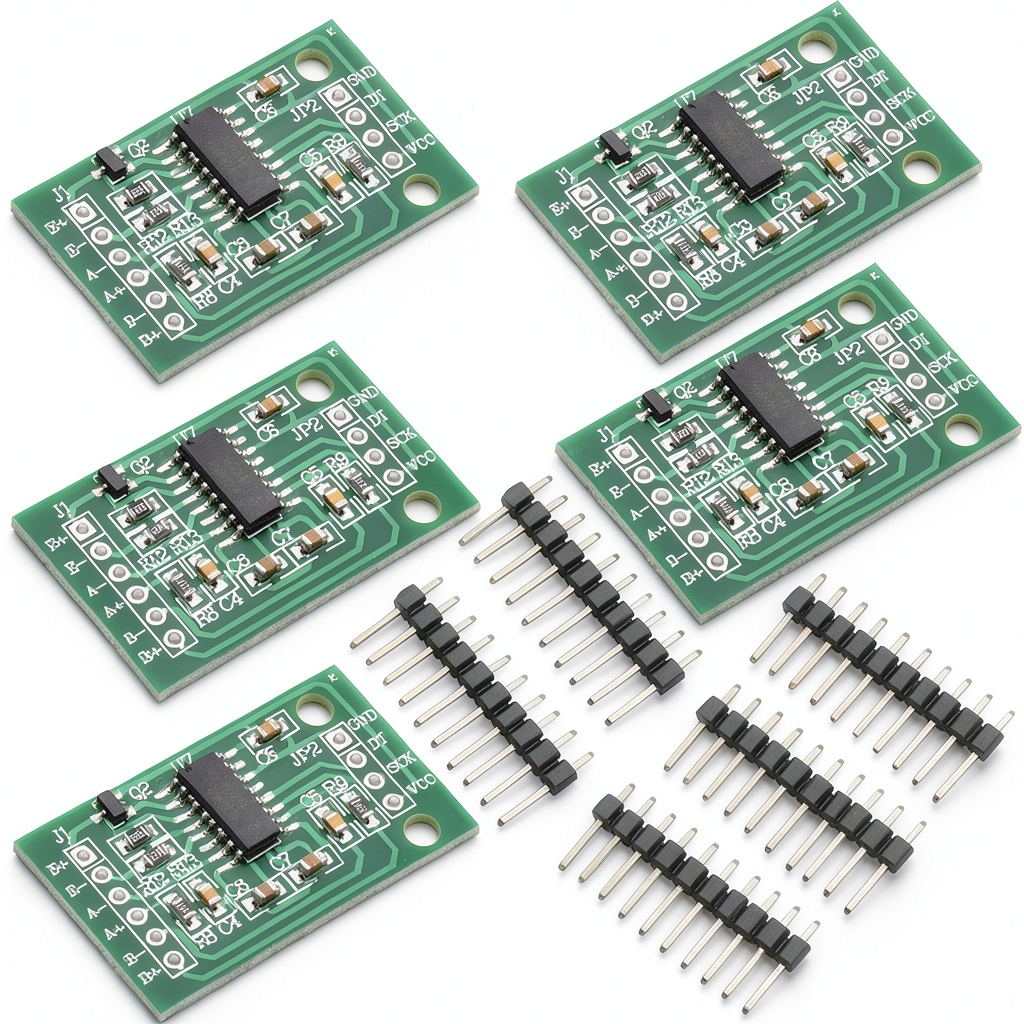

The Wkncksa HX711 load cell amplifier is a high-precision 24-bit analog-to-digital converter designed for industrial and scientific applications. It features an active low-noise on-chip PGA with selectable gains of 32, 64, and 128, ensuring accurate signal amplification for load cells and strain gauges. Operating within a voltage range of 2.6V to 5.5V and a temperature range of -20°C to +85°C, this module is built for durability and reliability. With typical operating current of 1.7 mA and cut-off current of 1 μA, it offers efficient power management. The compact size of 3.5 cm x 2 cm x 0.5 cm makes it easy to integrate into various systems, providing precise measurements for scales, balances, and force sensing projects.
Usage
This HX711 amplifier is ideal for industrial environments, laboratories, and DIY electronics projects where accurate weight or force measurement is critical. It is commonly used in digital scales, industrial balances, and material testing equipment. The module suits professionals in manufacturing, research, and education, as well as hobbyists building custom measurement systems. Its wide operating temperature and voltage ranges make it versatile for both indoor and outdoor applications, from quality control in factories to educational experiments in classrooms.
Why Choose Us
Wkncksa’s HX711 amplifier stands out due to its high-precision 24-bit A/D conversion, which minimizes measurement errors and enhances data accuracy. The low-noise PGA ensures clean signal amplification even in electrically noisy environments, providing consistent performance. Manufactured with robust components, it offers long-term reliability and compliance with industrial standards. Customers benefit from a product that combines advanced technology with user-friendly design, backed by positive reviews and a focus on quality assurance.
Key Features
- 24-bit high-precision A/D converter for accurate data acquisition
- Selectable PGA gains of 32, 64, and 128 to optimize signal amplification
- Low operating current of 1.7 mA and cut-off current of 1 μA for energy efficiency
- Wide voltage range of 2.6V to 5.5V and temperature range of -20°C to +85°C for versatile use
- Compact dimensions of 3.5 cm x 2 cm x 0.5 cm for easy integration into projects
FAQ
What is the typical accuracy of the HX711 amplifier?
The HX711 provides 24-bit resolution, offering high accuracy suitable for most industrial and DIY applications, with minimal noise interference due to its integrated PGA.
Can I use this amplifier with different load cells?
Yes, it is compatible with various load cells and strain gauges, and the selectable gain settings allow customization for different sensor types and measurement ranges.
What power supply is recommended for this module?
A stable DC power supply between 2.6V and 5.5V is ideal, such as from a regulated bench power source or batteries, to ensure consistent performance.
Is this product suitable for outdoor use?
With an operating temperature range of -20°C to +85°C, it can handle many outdoor conditions, but should be protected from direct moisture and extreme elements for longevity.
How do I connect the HX711 to a microcontroller?
It connects easily via standard digital interfaces; refer to the datasheet for wiring diagrams, typically using pins for data and clock signals to microcontrollers like Arduino.
