Description
Product Overview

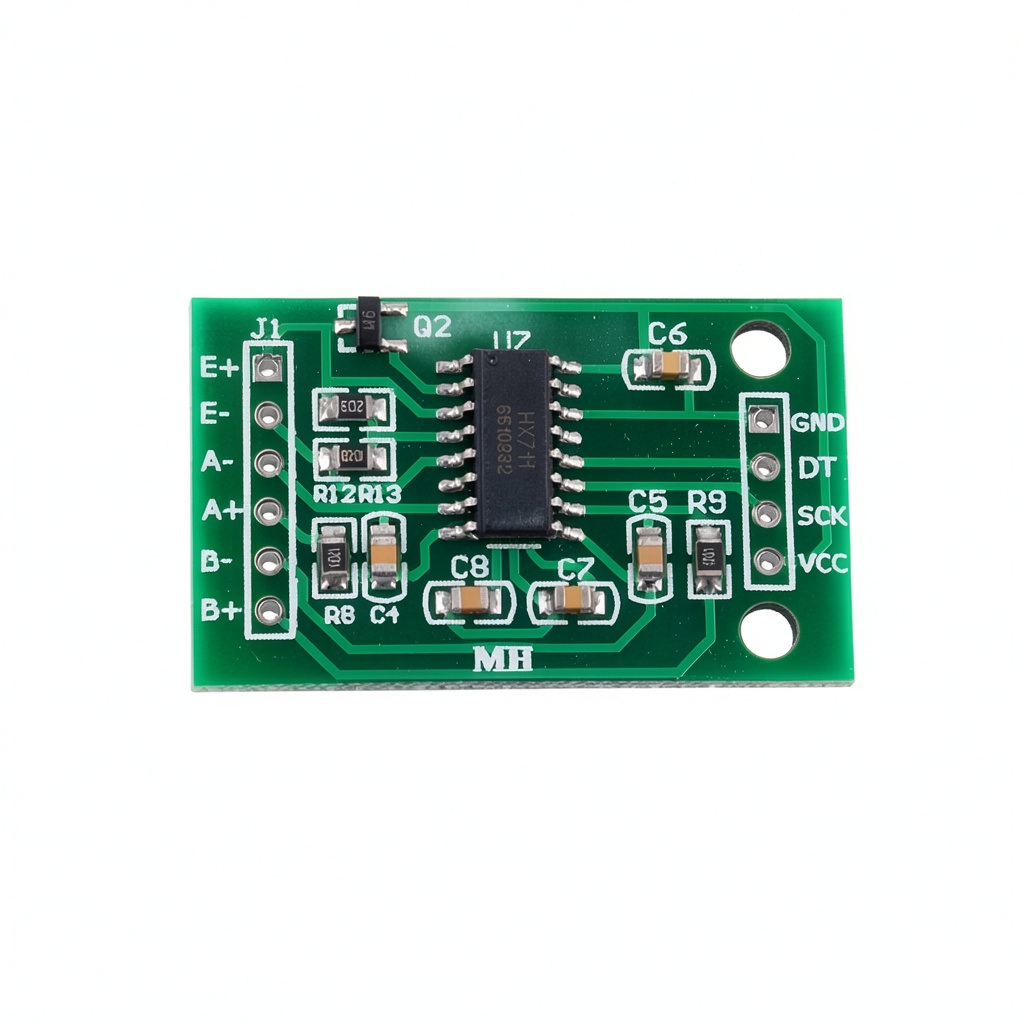

The Stemedu HX711 amplifier module is engineered for high precision electronic weighing systems, utilizing a 24-bit analog-to-digital converter chip for exceptional accuracy. This dual-channel module integrates a programmable gain amplifier with 128x amplification, supporting differential inputs for reliable signal processing. With dimensions of 1.38 x 0.79 x 0.2 inches and a lightweight design at 0.49 ounces, it is compact and easy to integrate into various scale setups. The module is built with industrial-grade components, ensuring durability and consistent performance in demanding environments. It is ideal for applications requiring precise weight measurements, such as laboratory scales and commercial weighing systems.
Usage
This HX711 amplifier module is designed for use in electronic scales, including kitchen scales, industrial weighing systems, and process control applications. It is suitable for engineers, hobbyists, and professionals in manufacturing or research settings who require accurate weight data. The module can be integrated into custom scale projects, educational kits, or commercial equipment where high precision and reliability are essential. Its dual-channel capability allows for flexible input configurations, making it versatile for various sensor types and measurement scenarios.
Why Choose Us
Stemedu’s HX711 amplifier module stands out due to its high precision 24-bit A/D conversion and robust construction, ensuring long-term reliability and accurate measurements. The module is backed by positive customer feedback and a track record of performance in industrial and scientific applications. With a focus on quality and user satisfaction, Stemedu provides modules that meet stringent standards, offering a cost-effective solution without compromising on functionality. The inclusion of five modules in this package adds value for projects requiring multiple units or backups.
Key Features
- 24-bit high precision A/D converter for accurate weight measurements
- Dual-channel input with programmable gain amplifier up to 128x
- Compact and lightweight design for easy integration into scale systems
- Ideal for weight scales, kitchen scales, and industrial process control

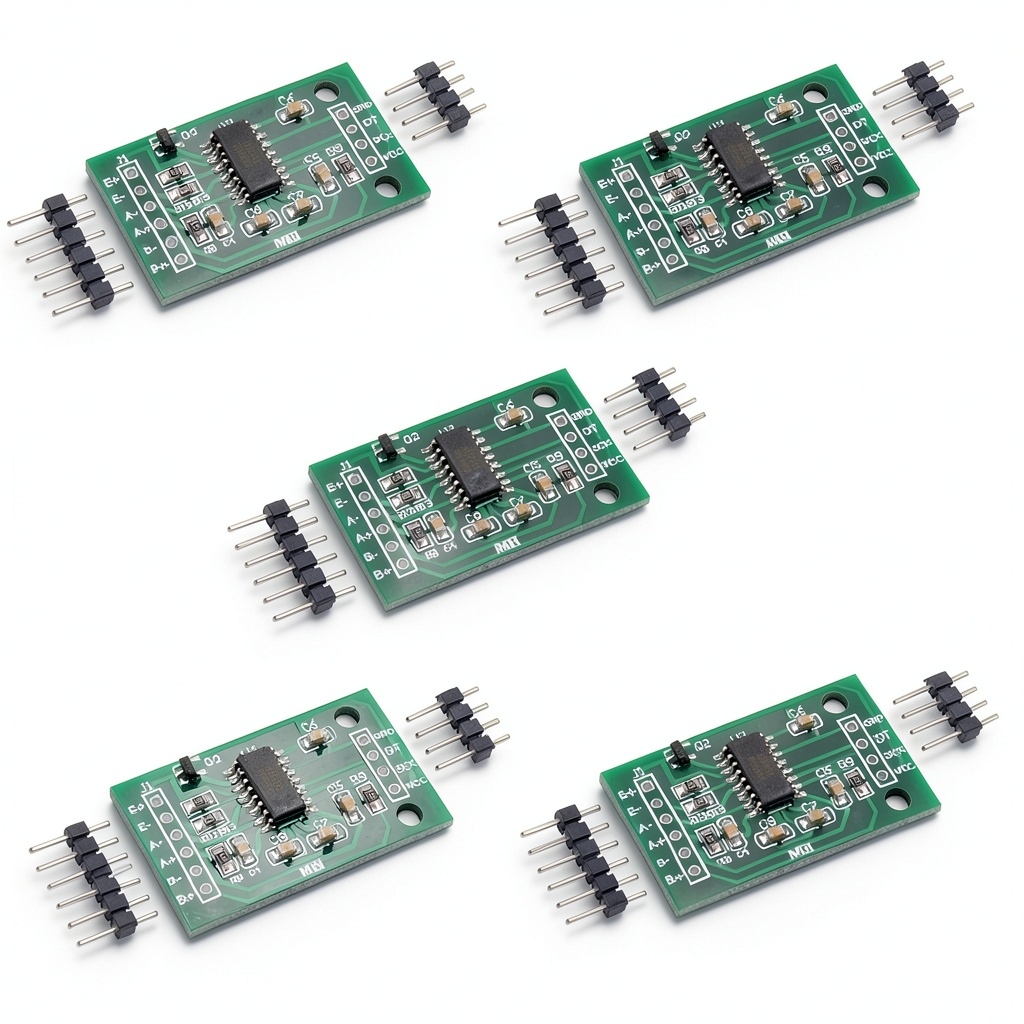

- Includes five modules for versatile project applications and replacements
FAQ
What is the input voltage range for the HX711 module?
The HX711 module typically operates with a supply voltage of 2.6V to 5.5V, making it compatible with a wide range of power sources, including batteries and standard DC adapters.
Can this module be used with any load cell?
Yes, the HX711 amplifier module is designed to work with most standard load cells that output a millivolt signal, provided the connections and calibration are properly configured for the specific sensor.
How do I calibrate the HX711 for accurate measurements?
Calibration involves setting the gain and offset values using the module’s programming interface, often through microcontroller code that adjusts for the load cell’s characteristics and desired measurement range.
What applications is this module best suited for?
It is ideal for precision weighing applications such as electronic scales, industrial monitoring systems, and educational projects where high accuracy and reliability are required.
Is technical support available for integrating this module?
While Stemedu provides product documentation, users may need to refer to online resources or communities for detailed integration support, as it is commonly used in DIY and professional projects.
Reviews
There are no reviews yet.
